Product Overview
BendPak HD-7W 7,000-lb. Capacity Short Runways Extra-Wide, Extra-Tall Four-Post Lift

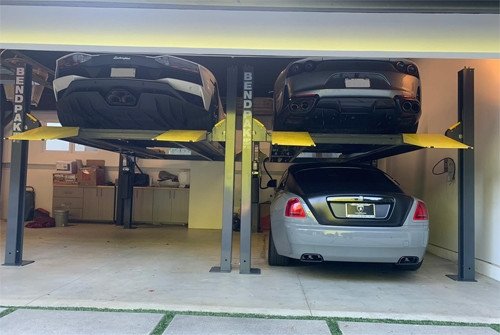

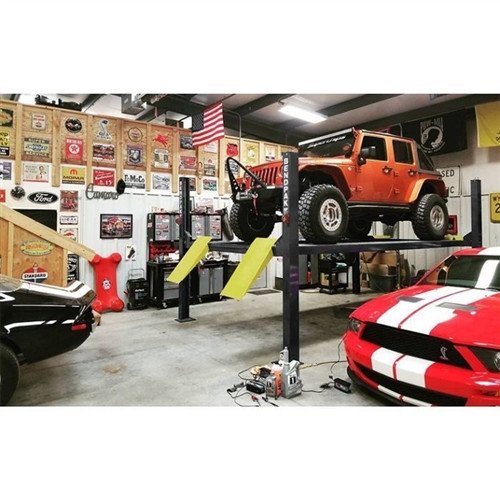

The BendPak HD-7W (REV. M) four-post lift is engineered for enthusiasts and professionals who need maximum drive-thru clearance and tall lifting height without sacrificing floor space. This ALI-certified 7,000-lb. capacity lift features short 164" runways and an extra-wide 86.5" drive-thru clearance, making it the ideal choice for wider vehicles, trucks, classic cars, ATVs, snowmobiles, jet skis, golf carts, boats, and more. With an 82" maximum rise and 86.5" max lifting height, you can turn any standard 8-foot ceiling garage or carport into a highly efficient storage and service area. An optional caster kit even allows you to roll the lift outside or reposition it wherever your work demands.
Why the HD-7W Stands Out
The HD-7W is built for those who need extra width and height but don't have the luxury of a long bay. Its compact 174" outside length and 110.25" overall width maximize valuable floor area while delivering exceptional 86.5" drive-thru clearance 10 inches wider than the HD-7P model. You get adjustable runway centerlines (56.5" or 63.375") to accommodate a broader range of vehicle track widths, from compact cars to full-size trucks and SUVs.
- 7,000-lb. lifting capacity with 3,500-lb. max per axle
- 82" maximum rise and 86.5" max lifting height in just 35 seconds
- Extra-wide 100.25" width between columns for oversized vehicles
- Short 164" runways with low 4.5" minimum height for sports cars and lowered vehicles
- 15 locking positions spaced every 4" for flexible parking and service heights
Dependable, Maintenance-Free Design
BendPak's electric/hydraulic power system is built for the long haul. Each HD-7W features a single hydraulic cylinder mounted underneath the runway, protected from damage and exposure. This cylinder is paired with four heavy-duty 3/8" aircraft-quality stainless steel cables, each rated at 14,400 lbs. a combined rating of over 822% of the lift's maximum capacity. The result is a durable, maintenance-free lifting system that operates smoothly and reliably for years.
Internal components like oversized self-lubricating cable rollers, rugged 1-1/4" roller axles, and internal anti-sway slider blocks in each column ensure quiet, stable operation. All cables, airlines, safety latches, and sheaves are fully enclosed within the lift structure for a clean, integrated design and added protection.
Advanced Safety Features

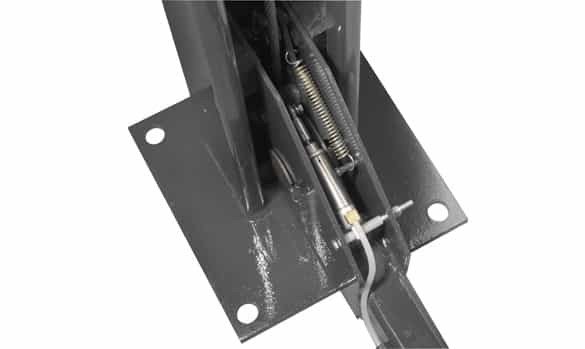

Safety is paramount when lifting heavy vehicles. The HD-7W is equipped with multi-position safety locks in each column, featuring adjustable lock ladders for precise height control. Spring-loaded safety locks automatically engage continuously as the lift rises, providing constant protection. A convenient push-button pneumatic safety release simultaneously disengages all four independent locks with a single press, making operation fast and effortless.
The hydraulic cylinder itself is a marvel of engineering: a single-piece, pilot-fitted, machined steel piston with pressure-loaded U-cup seals and wear bands virtually eliminates fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to at least.001" diametrically for superior operation and longevity. High-durometer, mechanically-loaded rod seals make rod leakage a thing of the past, while a urethane rod wiper provides abrasion-resistant exclusion protection. An integrated flow restrictor ensures controlled descent in the unlikely event of a hose rupture. For added redundancy, a secondary lock system acts as a slack-cable device, engaging automatically if cable failure ever occurs.

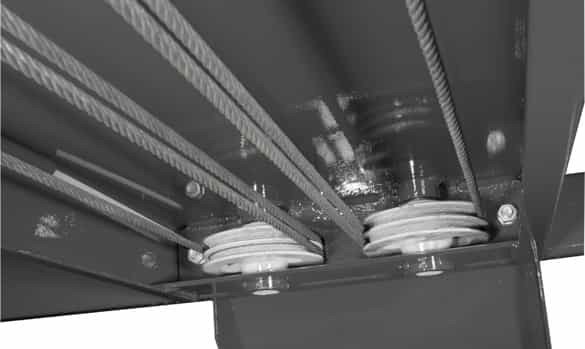

Dual-Hub Cable Sheaves for Extended Life
Unlike many competitors who cut costs with inferior components, BendPak insists on using dual-hub cable sheaves on every lift. This design dramatically reduces stress and fatigue on axles, sheaves, and cables, extending the service life of the entire lifting system. When you invest in a BendPak HD-7W, you're getting peace of mind as a standard feature—not an optional upgrade.
Built to Last: Premium Materials and Finish
All HD-Series lifts feature a durable powder-coat finish applied through BendPak's meticulous 10-step coating process. Every part is visually inspected, sandblasted, and washed in a 5-stage phosphate tank capable of accommodating parts up to 25 feet long. Parts are immediately dried to prevent rust, then outgassed in a curing oven to eliminate imperfections that could bubble and chip during final curing. Surfaces and threaded holes are carefully masked with high-temperature tape and silicone plugs before the powder is electrostatically applied and baked at 400°F for 45 minutes. The result is a high-quality, extremely durable finish that resists even the harshest environmental and chemical conditions.
The lift's welded cylinder body is constructed from robust steel tubing that exceeds ASTM specifications, ensuring cylinders remain straight, smooth, and long-lasting. Large 10" x 12" base plates provide a rock-solid foundation, while the 100" tall columns and rugged steel construction ensure stability under load.
Easy Loading and Operation
The HD-7W is designed for ease of use from the ground up. Low 4.5" deck runways accommodate even the lowest sports cars and slammed custom builds, while longer approach ramps with a non-skid surface make loading smoother and safer. The 19" wide runways include an integrated rail kit for optional accessories, such as the optional 4,500-lb. capacity rolling jack (Model RJ-45), giving you the flexibility to perform undercarriage service with ease.
All controls are conveniently located within close reach, and the lift operates on 220 VAC / 60 Hz / 1Ph power, producing just 45 dB of noise quieter than a normal conversation. The lift reaches full rise in just 35 seconds, so you spend less time waiting and more time working.
Key Highlights
- Extra-wide 86.5" drive-thru clearance and 100.25" width between columns for full-size trucks and wide-body vehicles
- Short 164" runways save valuable floor space while delivering 82" of rise
- Adjustable runway centerlines (56.5" or 63.375") accommodate narrow and wide track widths
- 15 multi-position safety locks spaced every 4" with push-button pneumatic release
- ALI-certified for peace of mind and compliance with industry standards
Important Installation Notes
Specifications Diagram
Product Features
- 7,000-lb. maximum lifting capacity
- Wide drive-thru with tall lifting height and short runways
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1-1/4" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
- Optional 4,500-lb. capacity rolling jack available (Model RJ-45)
Product Specifications
Model
HD-7P
HD-7W
Style
Narrow Width
Wide Width
Capacity
Lifting Capacity: (*)
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)
Rise
A Min. Runway Height
4.5" (114 mm)
B Max. Rise
82" (2,083 mm)
C Max. Lifting Height
86.5" (2,197 mm)
Time to Full Rise
35 seconds
Outside Dimensions
D Overall Width
100.25" (2,546 mm)
110.25" (2,800 mm)
E Outside Length
174" (4,420 mm)
F Overall Length
200" (5,080 mm)
G Height of Columns
100" (2,540 mm)
Inside Dimensions
H Width Between Columns
90.25" (2,292 mm)
100.25" (2,546 mm)
I Drive-Thru Clearance
76.5" (1,943 mm)
86.5" (2,197 mm)
Runways
J Runway Width
19" (483 mm)
K Length of Runways
164" (4,166 mm)
L Width Between Runways
37.5" (953 mm)
37.5" or 44.375" (953 or 1,127 mm)
M Runway Centerline
56.5" (1,435 mm)
56.5" or 63.375" (1,435 or 1,610 mm)
N Outside Edge of Runways
75.5" (1,918 mm)
75.5" or 82.375" (1,918 or 2,092 mm)
Minimum Wheelbase
Rated Capacity
115" (2,921 mm)
75% Capacity
100" (2,540 mm)
50% Capacity
85" (2,159 mm)
25% Capacity
70" (1,778 mm)
Locking
Locking Positions
15
Lock Spacing
Every 4" (102 mm)
Power Unit
Motor
220 VAC / 60 Hz / 1Ph
Noise
45 dB
Shipping
Weight
1,803-lbs. (817.8 kg)
1,702-lbs. (772 kg)
Dimensions
168" x 22" x 35" (4,267 mm x 559 mm x 889 mm)
166" x 22" x 34" (4,216 mm x 559 mm x 864 mm)
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Key Features
- Published product configuration: BendPak HD-7W 7,000-lb. Capacity Short Runways Extra-Wide, Extra-Tall Four-Post Lift The BendPak HD-7W (REV. M) four-post lift is engineered for enthusiasts and professionals who need maximum drive-thru clearance and tall lifting height without sacrificing floor space. This ALI-certified 7,000-lb. capacity lift
- Exact manufacturer model or part number: 5175120-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175120-V001 |
| MPN / Model | 5175120-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 5175120-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
