Product Overview

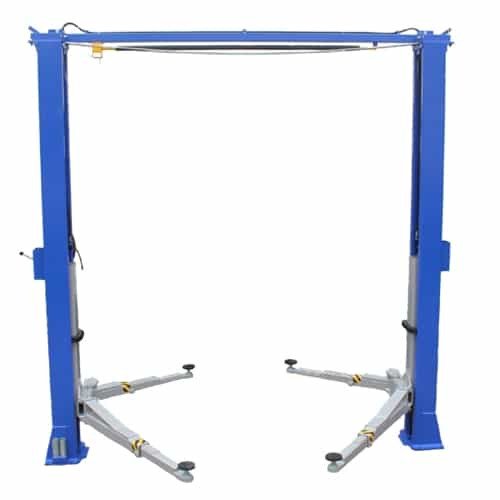

Auto Lift AL2-11KC-DX 11K lb Clear Floor Direct Drive Two Post Bi-Symmetric™ Car Lift
The Auto Lift AL2-11KC-DX delivers professional-grade performance and versatility at an exceptional value. Engineered for both commercial shops and serious home garages, this 11,000 lb capacity two post lift combines innovative Bi-Symmetric™ configurable arms with a space-saving clear floor design and powerful direct drive system. Whether you're working on compact cars, full-size sedans, SUVs, or light trucks, the AL2-11KC-DX adapts to your needs with precision and reliability.
Designed with the technician in mind, this lift features 3-stage front arms with extended reach, 2-stage rear arms, and symmetric columns that provide maximum flexibility for vehicle positioning. The single point lock release system makes operation simple and safe, while low profile arms ensure compatibility with a wide range of vehicles. Protective rubber door guards prevent vehicle damage, and the included spin-up pad adapters along with free stackable truck adapters (2" and 4") give you everything needed to handle diverse lifting applications right out of the box.
Key Advantages of the AL2-11KC-DX
- Bi-Symmetric™ Versatility: Easily switch between asymmetric and symmetric arm configurations to accommodate any vehicle type, from sports cars to pickup trucks
- Clear Floor Design: Eliminates floor plates for unrestricted bay access, easier vehicle positioning, and safer work environment with 104" drive-thru clearance
- Direct Drive Power: Reliable, low-maintenance drive system lifts vehicles to full height in just 50 seconds with smooth, consistent operation
- Extended Arm Reach: 3-stage telescoping front arms extend from 23" to 45", providing exceptional reach for precise lift point positioning
- Complete Adapter Package: Includes spin-up pads plus free stackable truck adapters (2" and 4") for lifting trucks, SUVs, and vehicles with specialized frame configurations
Professional-Grade Design Features

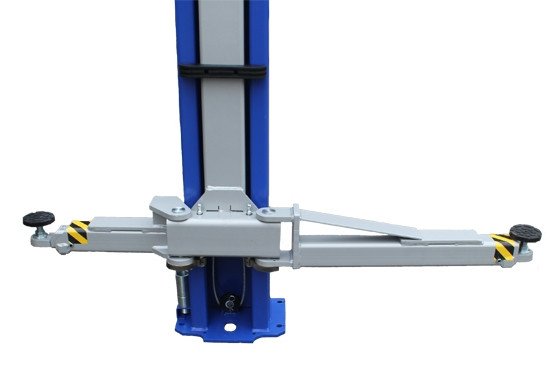

3 Stage Front Arms and 2 Stage Rear Arms
The advanced telescoping arm system on the AL2-11KC-DX provides unmatched flexibility. The front arms feature three telescoping stages that extend your reach to access difficult lift points, while the two-stage rear arms offer the perfect balance of reach and stability. This configuration allows you to handle everything from compact imports to full-size American vehicles with ease. The arms adjust smoothly and lock securely, giving you confidence in every lift.

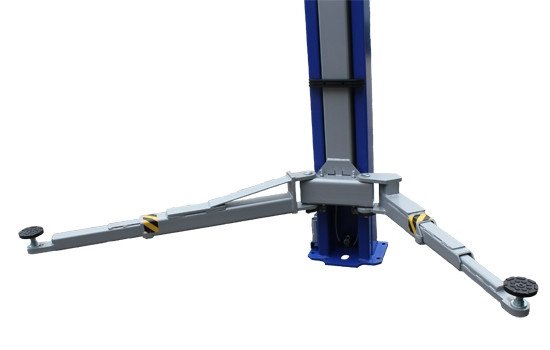

180° Front Arm Rotation
Maximize your positioning options with full 180° front arm rotation. This exceptional range of motion allows you to configure the arms in virtually any position needed to reach factory-recommended lift points. Whether you're switching between asymmetric and symmetric configurations or adapting to unusual vehicle designs, the rotating arms give you the flexibility to work efficiently and safely on any vehicle that enters your bay.
Rubber Door Guards and Spin Up Pad Adapters
Vehicle protection is built into every detail of the AL2-11KC-DX. Heavy-duty rubber door guards on each column protect vehicle doors and body panels from accidental contact during loading and unloading. The included spin-up pad adapters provide secure, stable contact with the vehicle frame, distributing lift forces properly and preventing damage to pinch welds or rocker panels. These professional touches demonstrate Auto Lift's commitment to protecting your customers' vehicles.
180° Front Arm Full Rotation Configuration
This detailed diagram illustrates the complete range of motion and positioning capabilities of the AL2-11KC-DX. With a max lift height of 71 inches and minimum pad height of just 4 inches, this lift accommodates low-profile sports cars and lifted trucks alike. The symmetric column design provides 116 inches width between columns with an impressive 104 inch drive-thru clearance, making vehicle loading and unloading effortless.
Expand Your Lifting Capabilities
Optional TP11DX-SPNCA Set of Four Spin-Up Cradle Adapters
For shops that regularly service a diverse fleet of vehicles, the optional TP11DX-SPNCA spin-up cradle adapters provide even more versatility. These specialized adapters offer additional contact surface area and alternative lifting configurations for vehicles with unique frame designs or specialized lift point requirements. Combined with the included truck adapters, you'll be equipped to handle virtually any lifting challenge.
Robust Construction & Easy Operation
Built to last with 7-gauge (3/16") thick steel columns, the AL2-11KC-DX provides the structural integrity and stability demanded by professional technicians. The direct drive system requires minimal maintenance while delivering years of reliable service. The convenient single point lock release allows for quick, safe unlocking from one central location—no need to walk around the lift to release multiple locks.
Powered by 220V, 20 AMP, single phase electrical service, this lift integrates easily into most shop electrical systems. The low profile arms slide under vehicles with ease, reducing setup time and improving workflow efficiency. At 144 inches overall height and 145-1/2 inches width overall with power unit, the lift fits in standard ceiling height bays while maximizing your working space.
Everything You Need to Get Started
The Auto Lift AL2-11KC-DX comes complete with everything you need for immediate productivity. Your lift includes spin-up pad adapters, rubber door guards, and a free set of stackable truck adapters (both 2" and 4" heights). This comprehensive package eliminates the need for immediate accessory purchases, allowing you to start lifting a wide variety of vehicles from day one.
Free Bonus Included:
Stackable Truck Adapters — Set of 4 each: 2" & 4"
Expand your lifting capabilities for trucks, SUVs, and high-clearance vehicles at no additional cost.
With a shipping weight of 1,705 lbs, the AL2-11KC-DX arrives ready for professional installation. The clear floor design simplifies installation compared to traditional floor plate lifts, and with our comprehensive installation manual and AI-powered installation support, you'll have your lift operational quickly and safely.
Experience the perfect balance of affordability, versatility, and professional performance with the Auto Lift AL2-11KC-DX the most used lift in your garage will be your favorite lift.
Product Features
- 11,000 lb lifting capacity
- Asymmetric/Symmetric Arm Configuration
- Direct Drive
- 3 Stage Front Arms
- Symmetric Columns
- Single Point Lock Release
- Low Profile Arms
- Rubber Doors Guards
- Spin Up Pads
Free Stackable Truck Adapters Set of 4 each: 2" & 4"
Product Specifications
Specifications
AL2-11KC-DX
Capacity
11,000 lbs.
Overall Height
144"
Width Overall w/Power Unit
145-1/2"
Max Lift Height
71"
Min Pad Height
4"
Width Between Columns
116"
Drive thru Clearance
104"
Lifting speed
50 sec
Asymmetric / Symmetric
Both
Front Arm Reach – min/max
23" – 45"
Rear Arm Reach – min/max
41" – 45"
Clear Floor / Floor Plate
Clear Floor
Column Thickness
gauge # 7 or 3/16" (4.76 mm)
Power
220V – 20 AMP – 1 PH
Ship Weight
1,705 lbs.
Key Features
- Published product configuration: Auto Lift AL2-11KC-DX 11K lb Clear Floor Direct Drive Two Post Bi-Symmetric™ Car Lift The Auto Lift AL2-11KC-DX delivers professional-grade performance and versatility at an exceptional value. Engineered for both commercial shops and serious home garages, this 11,000 lb capacity two post lift combines innovative
- Exact manufacturer model or part number: AL2-11KC-DX-V001
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Auto Lift |
|---|---|
| SKU | AL2-11KC-DX-V001 |
| MPN / Model | AL2-11KC-DX-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model AL2-11KC-DX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
