Product Overview
Atlas® ML-6051BC ALI Battery Powered Mobile Column Lift System 111,000 lbs
Ultimate Freedom and Power for Heavy-Duty Lifting

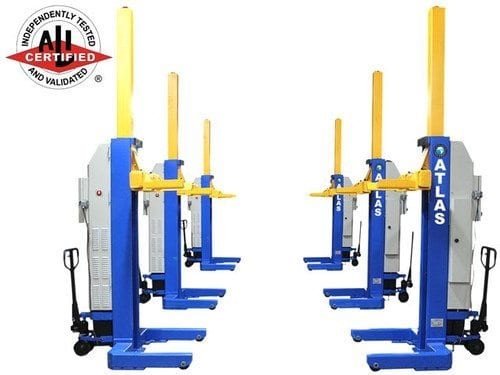

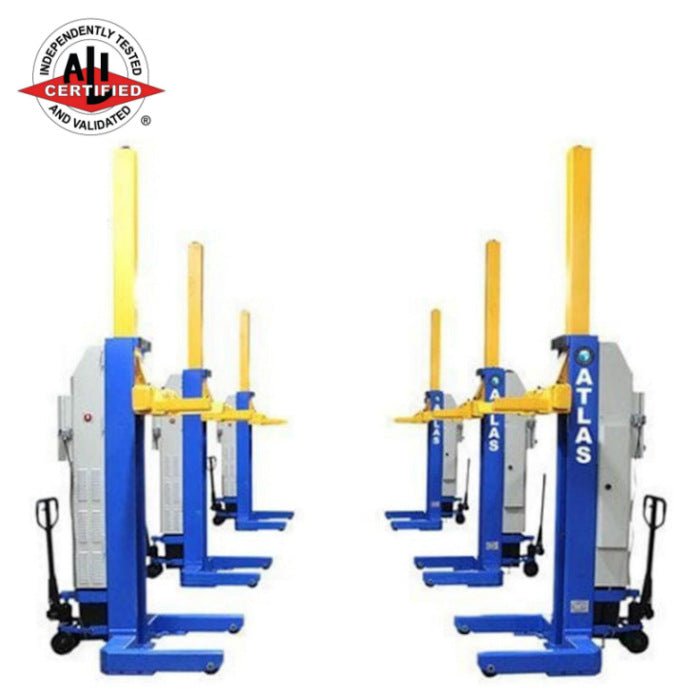

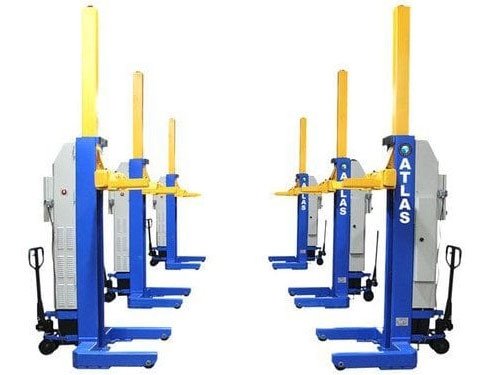

The Atlas® ML-6051BC ALI CERTIFIED Mobile Column Lift System delivers an impressive 111,000 lb. total lifting capacity with unmatched portability and convenience. This six (6) column system is designed and engineered specifically for bus, RV, and heavy truck lifting applications that demand high quality, reliability, and flexibility. Powered by 24V DC motors with dual batteries per column, this system works anywhere—no wall socket required. Move your lifting power wherever the job takes you, indoors or outdoors on any level concrete surface with a minimum thickness of six inches.

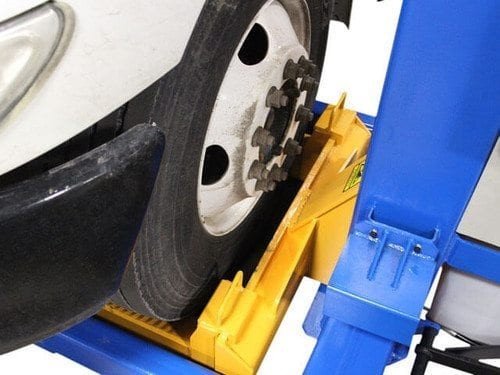

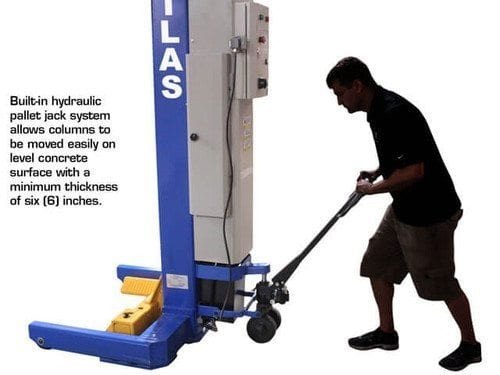

Each heavy-duty mobile column is equipped with a hydraulic pallet jack system and rechargeable batteries, providing unparalleled freedom of movement around your shop. When not in use, the columns can be easily stored out of the way, making this the perfect choice for repair shops that need to safely raise heavier trucks but have limited bay space. The Atlas® mobile column lift system offers full lifting capacity for both short and long wheelbase vehicles, with adjustable forks that accommodate tire diameters from 19 inches to 44 inches.

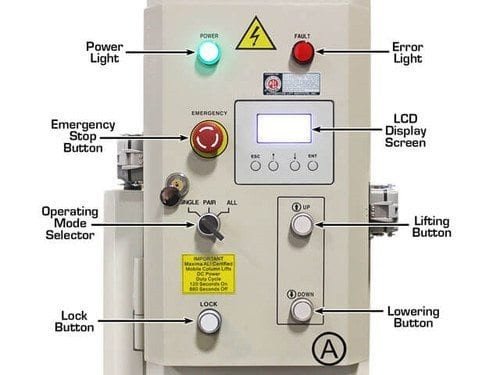

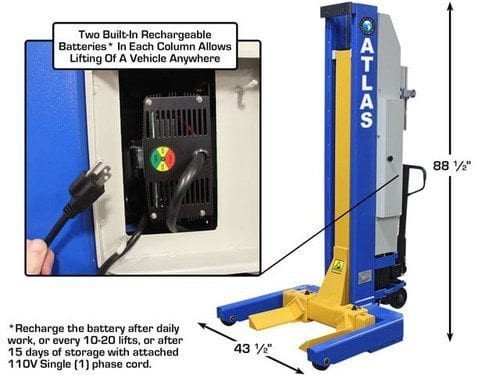

Battery power lasts 10-20 lifts depending on load and is recharged with the attached 110V single-phase cord. Each column is equipped with an LCD screen showing exact lifting height, an emergency stop button, and has an individual lifting capacity of 18,500 lbs. An advanced electronic synchronization system ensures all columns operate in perfect harmony, while double-safety features both hydraulic flow control and mechanical locks—provide peace of mind on every lift.
Optional Atlas® Tripod Support Stands can be used to support vehicles for wheel service.
Key Selling Points

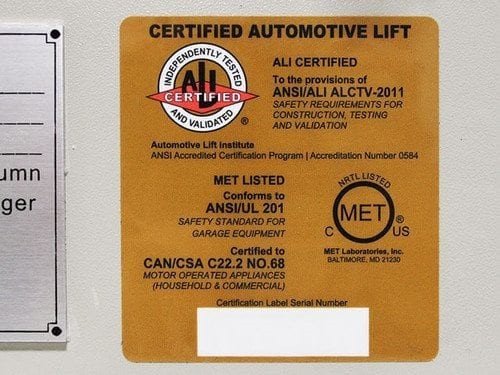

- ALI CERTIFIED for safety and compliance—trusted industry standard
- 111,000 lb. total capacity (18,500 lbs per column) handles the heaviest buses, RVs, and trucks
- Battery powered freedom: 24V DC motors with dual batteries per column—no wall outlet needed
- Complete six-column system with simultaneous operation and electronic synchronization
- Maximum portability: Hydraulic pallet jack system on each column for easy movement and storage
- LCD screens on every column display exact lifting height for precision control
- Adjustable forks accommodate tire diameters from 19" to 44"—versatile for any vehicle
- Double-safety design: Hydraulic flow control and mechanical locks for added security
- 2-year limited warranty and six 32' column connecting cables included
WARNING: Proposition 65 requires warnings on products that contain certain chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- ALI CERTIFIED
- 111,000 lb. Total Capacity – 18,500 lbs per Column
- 6 Mobile Columns
- Simultaneous operation of all columns
- LCD screen shows exact lifting height of each column
- Electronic system ensuring synchronization of all columns
- Double-safety guaranteed by both hydraulic flow control and mechanical locks
- Portable columns make your work easy and comfortable

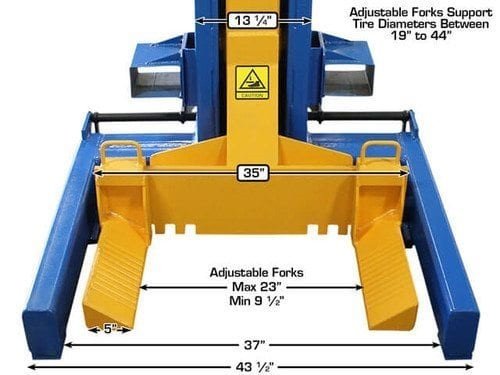

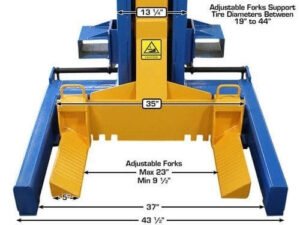

- Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
- Emergency stop button on every column
- Six 32' column connecting cables included
- 2.2 Kw 24V DC motor with two batteries per column
- 2 Year Limited Warranty
WARNING: Proposition 65 requires warnings on products that contain certain chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Specifications
Specifications
ML-60515BC
Capacity
18,500 lbs per Column – 111,000 lbs Total
Max Lifting Height
67" (5' 7")
Overall Height
145" (12' 1")
Resting Height
88 1/2" (7' 4 1/2")
Max Tire Diameter
44"
Min Tired Diameter
19"
Width
43 1/2" (3' 7 1/2")
Length
55 1/2" (4' 7 1/2"
Column Width
13 1/4"
Motor
2.2 Kw 24V DC motor with two batteries per column
Shipping Weight (For Six Columns)
10,2000 lbs
Shipping Weight Per Column
1,700 lbs. each
Key Features
- Published product configuration: Atlas® ML-6051BC ALI Battery Powered Mobile Column Lift System 111,000 lbs Ultimate Freedom and Power for Heavy-Duty Lifting The Atlas® ML-6051BC ALI CERTIFIED Mobile Column Lift System delivers an impressive 111,000 lb. total lifting capacity with unmatched portability and convenience. This six (6) column system is
- Exact manufacturer model or part number: ML-6051BC
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ML-6051BC |
| MPN / Model | ML-6051BC |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model ML-6051BC, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
