Product Overview

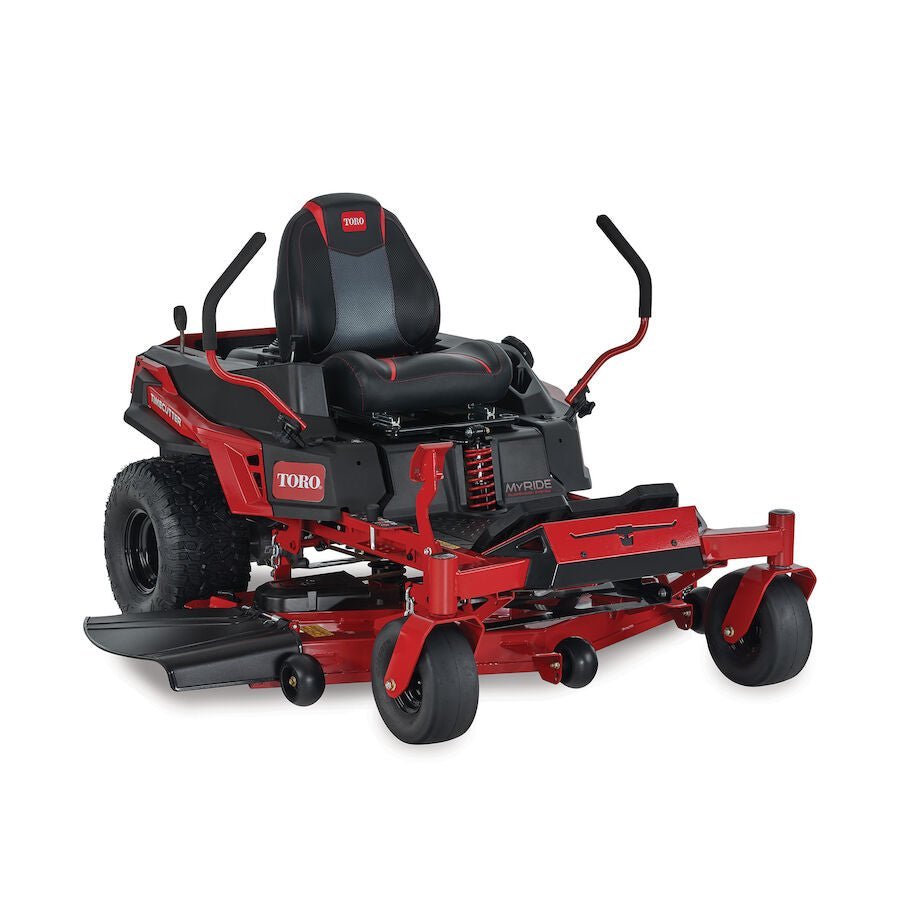

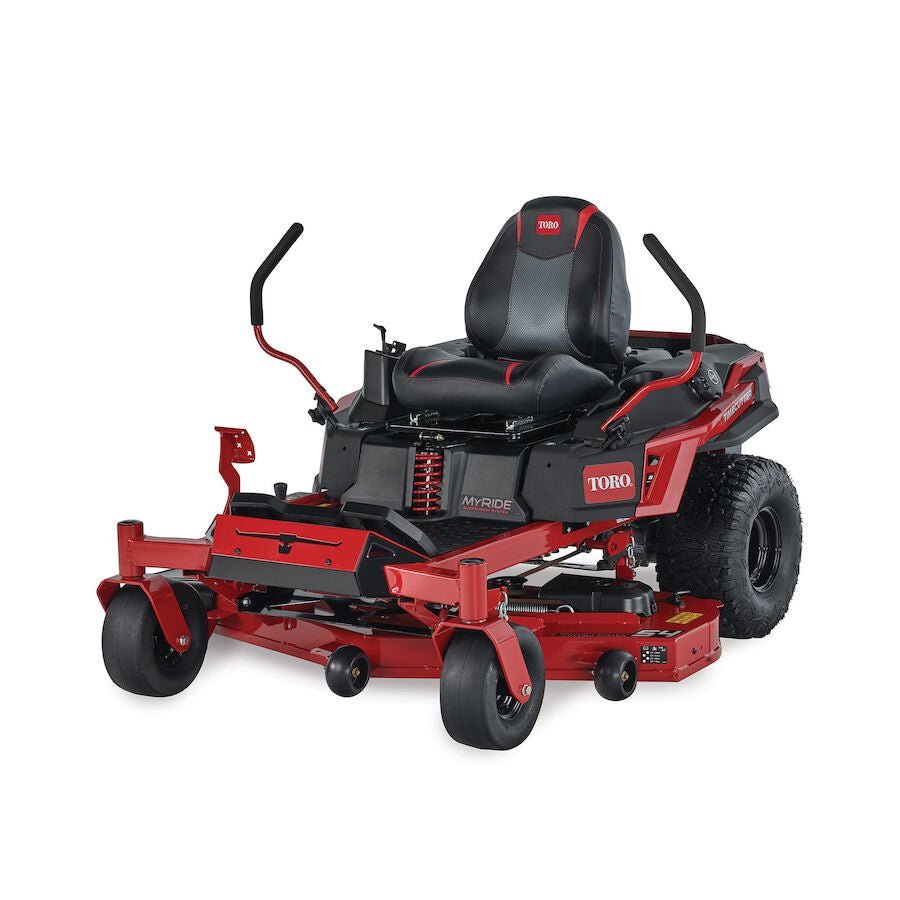

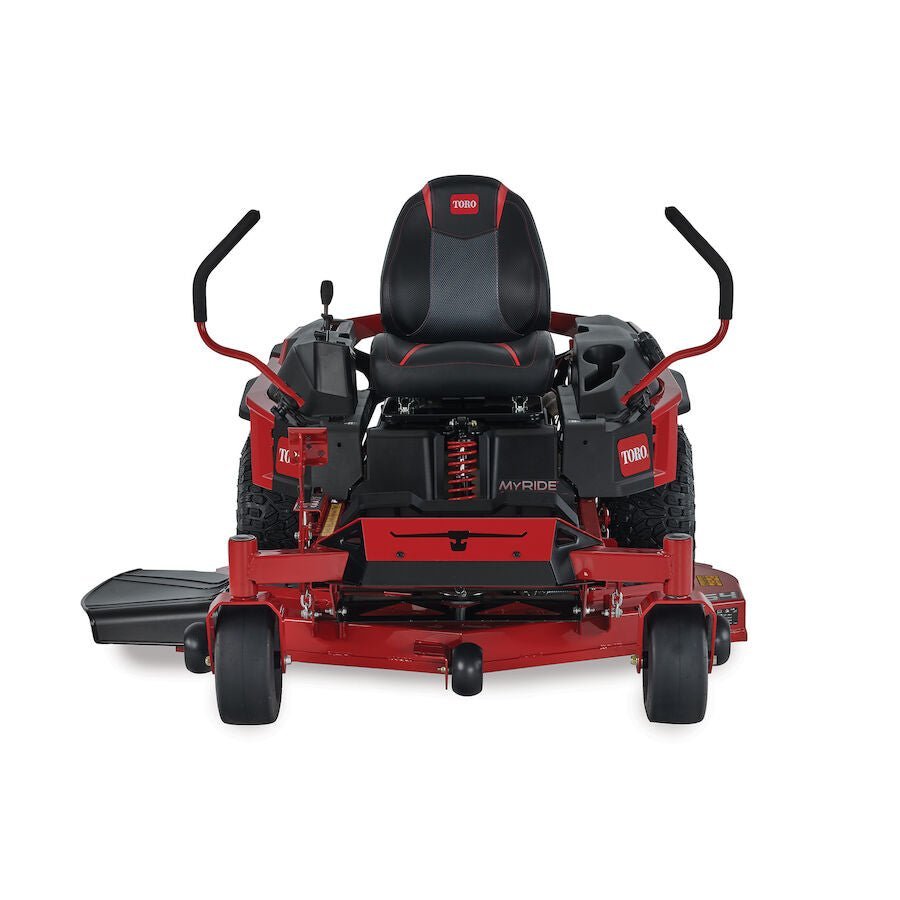

The Toro 77503 54″ TimeCutter Max MyRide Zero Turn Mower is a Toro lawn and grounds equipment attachment listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 77503. Key specifications for this configuration include engine brand: Kawasaki; cutting width: 54″; engine power: 23.0 hp; engine displacement: 726 cc.
Key Features
- JDF SKU: 77503
- Engine Brand: Kawasaki
- Cutting Width: 54″
- Engine Power: 23.0 hp
- Engine Displacement: 726 cc
- Engine Displacement (cc): 726 cc
- Transmission: Dual Hydrostatic HG-EZT2200
- Maximum Speed: 7.0 mph
- Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
- Weight: 684 lbs
- Foot Operated Height of Cut: Standard
Product Highlights
- Deck construction: the published configuration uses 10-gauge fabricated or welded steel.
- Deck service: an integrated washout port supports routine underside cleaning.
Product Specifications
| Brand | Toro |
|---|---|
| Engine Brand | Kawasaki |
| Model / MPN | 77503 |
| JDF SKU | 77503 |
| Cutting Width | 54″ |
| Engine Power | 23.0 hp |
| Engine Displacement | 726 cc |
| Engine Displacement (cc) | 726 cc |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Maximum Speed | 7.0 mph |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Weight | 684 lbs |
| Foot Operated Height of Cut | Standard |
| Height of Cut | 1.5 – 5.0 in. / 3.8 – 12.7 cm |
| Air Filter | Standard Kawasaki Air Cleaner |
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Blade Count | 3 |
| Blade Tip Speed | 17,600 ft/min / 5,364 m/min |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. Wall Tubular Steel |
| Caster Tires | 12 in. x 6 in. – 5 in. Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | MyRIDE® Suspension System |
| Cooling System | Air Cooled |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 54″ |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 20 in. x 10 in. – 8 in |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Horsepower | 23.0 hp |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. Steel Tubing |
| Greasable Bearings | Yes |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max MyRide |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 12 in. x 6 in. Front, 20 in. x11 in. Rear |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Washout Port | Standard |
Application and Compatibility
Confirm the carrier machine, hitch or mounting interface, hydraulic requirements, dimensions, and included hardware before ordering this attachment.
Before You Order
- Use JDF SKU 77503 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
