Product Overview

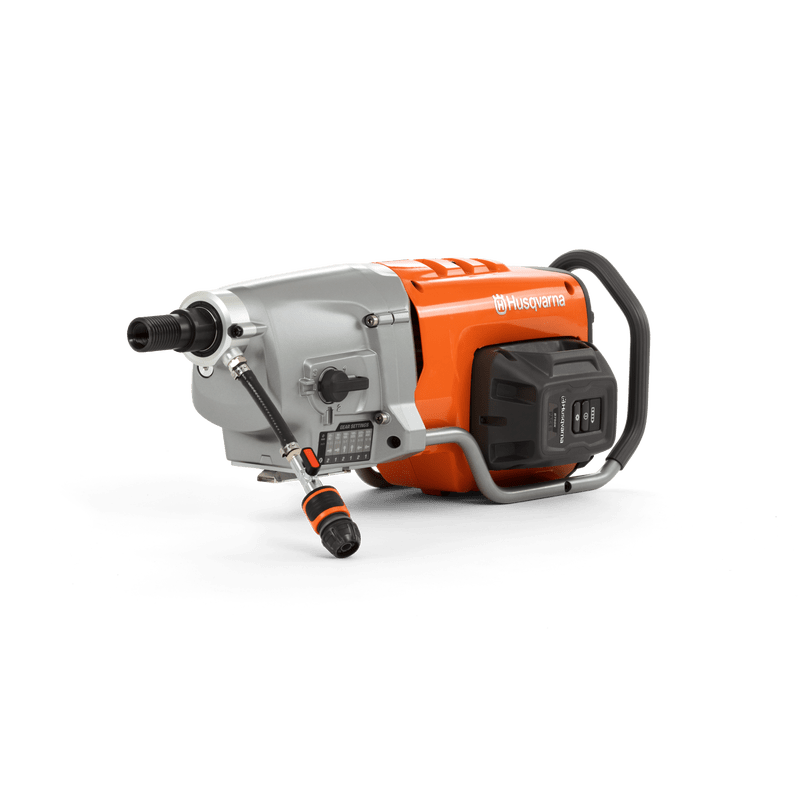

Husqvarna DM 1 PACE Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DM 1 PACE configuration pairs Battery power source, 3.2 hp output power, and 26 lbs weight.
Key Features
- PACE 94 V power/drive requirement captured for jobsite planning
- 16" drilling or boring capacity for selecting the right bit and setup
- 234 rpm speed range or gearbox detail supports bit-size control
- 1 1/4" -7 UNC spindle/thread detail helps confirm bit and adapter compatibility
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
Product Specifications
- Max Bit Diameter
- 16"
- Power Source
- Battery
- Recommended Bit Diameter
- 1" – 16"
- Tool Mount
- Rig-Mounted
- Wet/Dry Use
- Wet/Dry
- Motor Type
- BLDC (brushless)
- Output Power
- 3.2 hp
- Battery eco system
- PACE
- Drill bit diameter with stand, max
- 16 in
- Recommended drill bit diameter, min
- 1 in
- Number of gearbox speeds
- 3
- Numbers of electronical gearbox speeds
- 2
- Spindle speed unloaded gear 1
- 234 rpm
- Spindle speed unloaded gear 2
- 431 rpm
- Spindle speed unloaded gear 3
- 888 rpm
- Water connector
- Gardena Male
- Water pressure, max
- 43.5 psi
- Spindle thread, inner
- G 1/2"
- Spindle thread, outer
- 1 1/4" -7 UNC
- Product size length
- 26.5 in
- Product size width
- 6.8 in
- Product size height
- 9.3 in
- Weight
- 26 lbs
- Packaging length (Calc)
- 30.315 in
- Packaging width (Calc)
- 10.039 in
- Packaging height (Calc)
- 13.189 in
- Article gross weight (Calc)
- 33.51 lbs
- Sound power level, guaranteed (LWA)
- 109.1 dB(A)
- Sound power level, measured
- 109.1 dB(A)
- Sound pressure level at operators ear
- 93.4 dB(A)
- Warranty
- 2 year limited
- WooCommerce SKU
- 970602506
- Store Title
- Husqvarna DM 1 PACE
- Battery System
- PACE 94 V
- Compatible Stand
- DS 500 drill stand
- Included
- Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
Applications & Purchase Considerations
The DM 1 PACE is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Battery power source, 3.2 hp output power, and 26 lbs weight.
- Site utility or fuel: Battery
- Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
- Handling reference: 26 lbs
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Husqvarna Construction |
|---|---|
| SKU | 970602506 |
| MPN / Model | 970602506 |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Core Drilling |
| Collection | Core Drill Motors |
| Product Type | Core Drill |
Before You Order
Confirm that model 970602506, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
