Product Overview

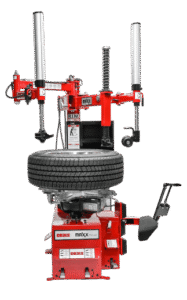

Coats Maxx 80 Rim Clamp Tire Changer
Coats Maxx 80 Rim Clamp Tire Changer — Heavy-Duty Shop Production
The Coats Maxx 80 is a tabletop rim-clamp tire changer built for high-volume tire shops, dealerships, and service centers. With air-operated 4-clamp chucking, dual hand/foot bead-loosener control, and single-point secondary bead seating, it mounts and demounts modern low-profile and run-flat tires quickly and safely. The chassis is tested to 250,000 bead-breaking cycles for years of daily production.
Built for the busy bay
Clamping range: 6″–24″ externally (up to 6″–30″ with optional extended clamps)
Handles big wheels: tires up to 50″ diameter and wheel widths to 22″
Grip Max 2.0 clamps with built-in plastic protectors — no metal-to-metal contact with the rim
Dual-mode hand/foot bead loosener for fast, controlled bead breaking
Single-point secondary inflation with dual concentrated jets to seat stubborn beads
Specifications
Type
Tabletop rim-clamp tire changer
External clamping range
6″–24″ (6″–30″ with extended clamps)
Max rim width
16″
Max tire diameter
50″
Clamping system
4 air-operated clamps (Grip Max 2.0)
Bead seating
Single-point secondary inflation, ~5.4 gal tower reservoir, dual jets
Power options
110V, 220V, 220V 2-speed, or air (4.0 HP air motor)
Air requirement (air model)
110–175 psi, ~15 SCFM
Brand
COATS (American-made)
Add-ons available
Robo-Arm assist tower, Robo-Roller, extended clamps, and specialty adapters are available — ask us about the right configuration for your shop.
Financing is available through Affirm.
Features
- Clamping range: 6″–24″ externally (up to 6″–30″ with optional extended clamps)
- Handles big wheels: tires up to 50″ diameter and wheel widths to 22″
- Grip Max 2.0 clamps with built-in plastic protectors — no metal-to-metal contact with the rim
- Dual-mode hand/foot bead loosener for fast, controlled bead breaking
- Single-point secondary inflation with dual concentrated jets to seat stubborn beads
Specifications
- Type: Tabletop rim-clamp tire changer
- External clamping range: 6″–24″ (6″–30″ with extended clamps)
- Max rim width: 16″
- Max tire diameter: 50″
- Clamping system: 4 air-operated clamps (Grip Max 2.0)
- Bead seating: Single-point secondary inflation, ~5.4 gal tower reservoir, dual jets
- Power options: 110V, 220V, 220V 2-speed, or air (4.0 HP air motor)
- Air requirement (air model): 110–175 psi, ~15 SCFM
- Brand: COATS (American-made)
- Clamping range: 6″–24″ externally (up to 6″–30″ with optional extended clamps)
- Handles big wheels: tires up to 50″ diameter and wheel widths to 22″
Key Features
- Published product configuration: Coats Maxx 80 Rim Clamp Tire Changer Coats Maxx 80 Rim Clamp Tire Changer — Heavy-Duty Shop Production The Coats Maxx 80 is a tabletop rim-clamp tire changer built for high-volume tire shops, dealerships, and service centers. With air-operated 4-clamp chucking, dual hand/foot bead-loosener control, and single-point
- Exact manufacturer model or part number: COATS-MAXX-80-TIRE-CHANGER
- Cataloged for Automotive Shop Equipment: Coats Equipment — Coats Tire Changers
- 5 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Coats |
|---|---|
| SKU | COATS-MAXX-80-TIRE-CHANGER |
| MPN / Model | COATS-MAXX-80-TIRE-CHANGER |
| Condition | New |
| Division | Automotive Shop Equipment |
| Primary Category | Coats Equipment |
| Collection | Coats Tire Changers |
Before You Order
Confirm that model COATS-MAXX-80-TIRE-CHANGER, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
