Challenger 44060X HD Chain-Driven XL Ex-Length 4-Post Lift 60,000 lb – New Black Color

Product Overview

Challenger 44060X HD Chain-Driven XL Ex-Length 4-Post Truck Lift 60,000 lb Capacity – New Black Color

Heavy-Duty Lifting for Commercial Trucks and Transit Vehicles

The Challenger 44060X represents the pinnacle of heavy-duty four-post lifting technology, engineered specifically for 60,000 lb. capacity applications. This extra-length model features a massive 46-foot overall length, making it the ideal solution for lifting large commercial trucks, transit buses, waste vehicles, construction trucks, and other heavy-duty fleet equipment. Now available in a sleek new black color, this lift combines industrial strength with professional aesthetics.

Built on Challenger's proven chain-driven design, the 44060X features heavy-duty, high tensile strength leaf chain and sealed roller bearings for maximum reliability in demanding commercial environments. The innovative variable-synchro power system with dual hydraulic lift cylinders provides the unique ability to variably or simultaneously raise the front or rear lift suspension, creating a stable platform when lifting vehicles with uneven weight distribution — a common challenge with waste trucks, concrete mixers, and other specialty commercial vehicles.

Economic High-Capacity Lifting in a Traditional 4-Post Design

We designed our 40,000 lb. to 60,000 lb. lifts as an economic high-capacity lifting solution in a traditional four-post design. Diamond plate anti-skid runways and ramps provide positive vehicle traction and long-lasting durability. The synchro-power system has dual heavy-duty lift cylinders as well as lever controls, which provide variable or synchronous power to the front and/or rear suspension of the lift, making it perfect for lifting large axle vehicles with heavier front or rear ends, including waste trucks and other construction trucks.

Other features of this heavy-duty four-post truck lift that provide convenience, safety, and reliable heavy-duty lifting include: independent power control console mounted away from the hydraulic lift, bolt-down diamond plated approach ramps, adjustable runways to accommodate a variety of vehicle widths (36" – 58" between runways), and a built-in runway rail system for optional rolling jacks and sliding oil drain pans. Available in standard, extended, and extra-long lengths to handle many different vehicle lengths — the 44060X model accommodates wheelbases up to 430 inches.

Key Performance Highlights

• 60,000 lb. lifting capacity handles the heaviest commercial vehicles and equipment

• 46-foot overall length (410" between columns) accommodates extra-long wheelbases up to 430"

• 73-inch rise height with 10-level twin ladder lock positions for comfortable working height

• Variable-synchro power system raise front or rear independently or simultaneously for vehicles with uneven weight distribution

• Velocity fused redundant hydraulic safety system and single-point air actuated lock release for maximum safety

• Fast 75-second rise time powered by a 15HP motor (230v-460v 3 Phase)

Professional Features for Commercial Applications

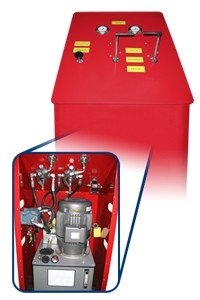

Independent Control Console
The independent control console provides safe and convenient access to the lift's power controls — featuring the variable-synchro power system to raise and lower the front or rear suspension either simultaneously or independently. The console includes dual pressure gauges for precise monitoring and a single-point air lock release button that allows technicians to disengage all column locks simultaneously for efficient operation.

Heavy-Duty Fixed Approach Ramps
Diamond plate anti-skid ramps are securely bolted down for safe and easy drive-on access. The textured diamond plate surface provides positive traction even in wet or oily conditions, ensuring vehicles can safely mount the lift. These heavy-duty fixed ramps are built to withstand the demanding daily use of commercial truck service environments.

Twin Ladder Lock Positions
The 10-level twin ladder lock positions provide a comfortable working height for a variety of service work on a variety of vehicles. This flexibility allows technicians to position the lift at the optimal height for brake service, suspension work, exhaust repair, underbody inspection, or any other maintenance task, reducing fatigue and improving productivity.

Built for Safety and Versatility

Safety is paramount in any heavy-duty lifting application. The Challenger 44060X incorporates a velocity fused redundant hydraulic safety system that provides multiple layers of protection. The single-point air actuated lock release system streamlines operation while maintaining security — technicians can disengage all column locks simultaneously from the control console, eliminating the need to manually release individual locks.

The adjustable runways accommodate a wide variety of tread and axle widths, with 36" to 58" between runways to handle everything from medium-duty trucks to wide-axle commercial vehicles. Each runway is 32 inches wide with a 14-inch height, providing a stable platform. The built-in runway rail system accepts optional convenience accessories like rolling jacks and sliding drain pans, allowing you to customize the lift for your specific service needs.

Product Features

• 40,000 – 60,000 lb. lifting capacity for heavy commercial truck and transit vehicles

• Heavy duty, high tensile strength leaf chain and sealed roller bearings for maximum reliability

• Variable-synchro power system with dual hydraulic
lift cylinders provide the ability to variably or
simultaneously raise the front or rear lift suspension,
providing a stable platform when lifting
vehicles with heavier front or rear axles

• Velocity fused redundant hydraulic safety system

• Single point air actuated lock release system allows technician to disengage all column locks simultaneously

• Diamond plate anti-skid runways and heavy duty fixed approach ramps for positive vehicle traction and long lasting durability

• Adjustable runways accommodate a variety of tread and axle widths

• Built-in runway rail system for optional convenience accessories like rolling jacks and sliding drain pan

Product Specifications

Model Number

44060
44060E
44060X

Lift Capacity

60,000 lbs.

A Overall Length

36'

41'

46'

B Overall Width

17' 1-1/4"

C Inside Columns

144"

D Between Columns

290"

350"

410"

E Overall Height

92"

F Height of Runways

14"

G Width of Runways

32"

H Width Between Runways

36" – 58"

I Maximum Wheelbase

310"

370"

430"

J Rise Height

73"

Motor

15P

Voltage

230v – 460v 3 Phase

Speed of Rise

75 seconds

Amps

30

Available in Black Only

Key Features

• Published product configuration: Challenger 44060X HD Chain-Driven XL Ex-Length 4-Post Truck Lift 60,000 lb Capacity – New Black Color Heavy-Duty Lifting for Commercial Trucks and Transit Vehicles The Challenger 44060X represents the pinnacle of heavy-duty four-post lifting technology, engineered specifically for 60,000 lb. capacity applications. This
• Exact manufacturer model or part number: 44060X
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 44060X, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Product document 1
• Product document 2
