Product Overview

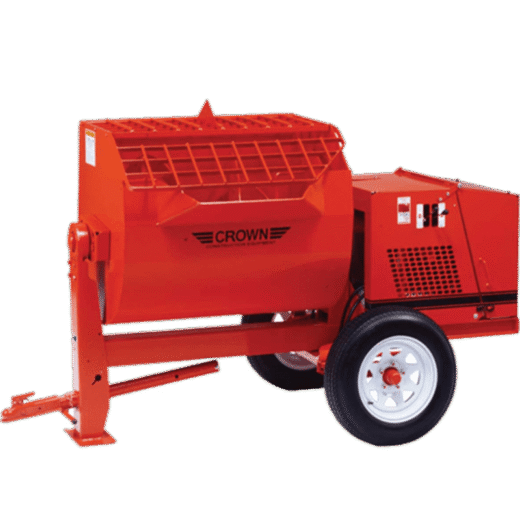

Crown Equipment 12SH Series Mortar/Plaster Mixer is a mortar/plaster mixer designed for mixing mortar, stucco, grout, and other dense masonry materials. The 12SH Series configuration pairs Gasoline power source, Honda 13 HP gas or Baldor 5 HP electric power, and 12 cu ft drum capacity.
Key Features
- 12 ft³ batch/output detail helps crews plan mix cycles
- Honda GX390 / Honda gas engine power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- Hydraulic drive/dump drive system for consistent material turnover
- Built for mortar, plaster, stucco, grout, and masonry workflows
- Paddle mixing format is suited to repeated contractor batches
Product Specifications
- Drum Capacity
- 12 cu ft
- Drum Material
- Steel drum
- Horse Power
- 13 HP
- Power Source
- Gasoline
- Weight
- 1300 lb max
- Product Type
- Mortar/Plaster Mixer
- Product Subtype
- Highway
- Model/Series
- 12SH Series
- Part #
- 609542
- Frame
- High Strength
- Mixing Blades
- Regular Paddles
- Engine/Motor
- Honda GX390 / Honda gas engine
- Gearbox Drive Type
- Hydraulic
- Drive
- Hydraulic drive/dump
- Batch Input
- 3.5 – 4 bags
- Batch Output
- 12 ft³
- Charging Height
- 58"
- Batch Materials
- Mortar, Plaster, Grout
- Axle Type
- Rubber Torsion Suspension System
- Wheel Size
- B78 x 13"
- Wheel Type
- Pneumatic
- Stand Type
- High-Strength
- Width (in)
- 52.5"
- Operating Length (in)
- 91.75"
- Towing Length (in)
- 112.25"
- Height (in)
- 57.5"
- Warranty
- 1 year limited
- Manufacturer family
- 12SH/S12SH Hydraulic Mortar Mixer
- Batch Capacity Bags
- 3.5-4 bags
- Power
- Honda 13 HP gas or Baldor 5 HP electric
- Overall Height
- 57.5"
- Overall Width
- 52.5"
- Overall Length
- 91.75" / 112.25" tow pole in/out
- Tires
- 175/70R13 pneumatic
- Spiral Blade Option
- Yes
- Highway Towable
- Yes
- Included
- Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
Applications & Purchase Considerations
The 12SH Series is best matched to mixing mortar, stucco, grout, and other dense masonry materials where the job requires Gasoline power source, Honda 13 HP gas or Baldor 5 HP electric power, and 12 cu ft drum capacity.
- Site utility or fuel: Gasoline
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 1300 lb max
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Crown Construction Equipment |
|---|---|
| SKU | 609542p |
| MPN / Model | 609542p |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Mixers |
| Collection | Mortar Mixers |
| Product Type | Mortar/Plaster Mixer |
Before You Order
Confirm that model 609542p, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
