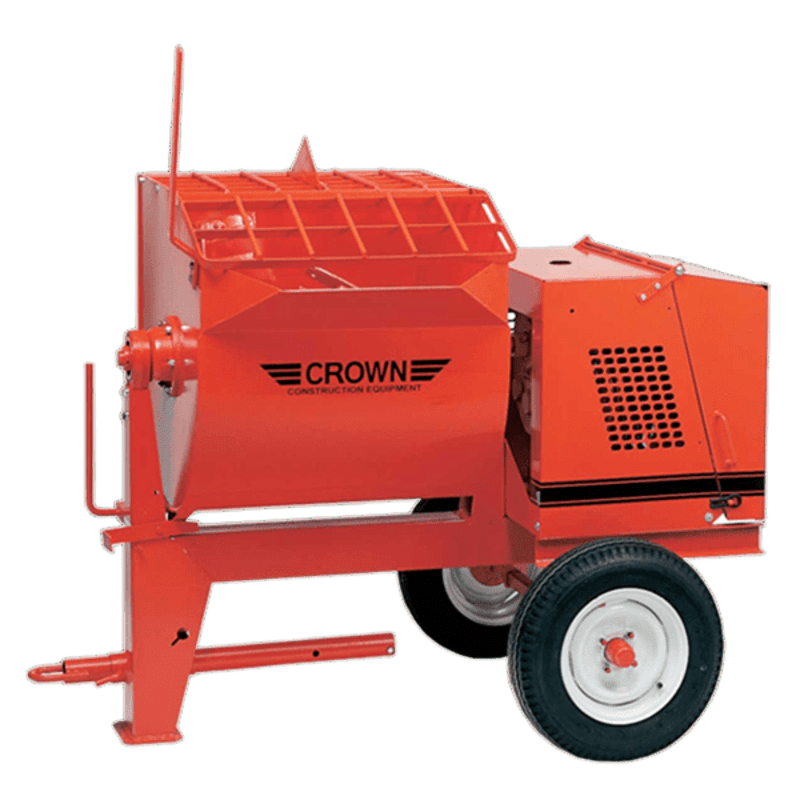

Product Overview
Crown Equipment 10S Series Mortar/Plaster Mixer is a mortar/plaster mixer designed for mixing mortar, stucco, grout, and other dense masonry materials. The 10S Series configuration pairs Gasoline power source, Honda 8 HP gas or Baldor 2 HP electric power, and 10 cu ft drum capacity.
Key Features
- 10 ft³ batch/output detail helps crews plan mix cycles
- Honda gas engine power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- Pinions & Gear Rings drive system for consistent material turnover
- Built for mortar, plaster, stucco, grout, and masonry workflows
- Paddle mixing format is suited to repeated contractor batches
Product Specifications
- Drum Capacity
- 10 cu ft
- Drum Material
- Steel drum
- Horse Power
- 8 HP
- Power Source
- Gasoline
- Weight
- 850 lb max
- Product Type
- Mortar/Plaster Mixer
- Product Subtype
- Highway
- Model/Series
- 10S Series
- Part #
- 609896
- Frame
- High Strength
- Mixing Blades
- Regular Paddles
- Engine/Motor
- Honda gas engine

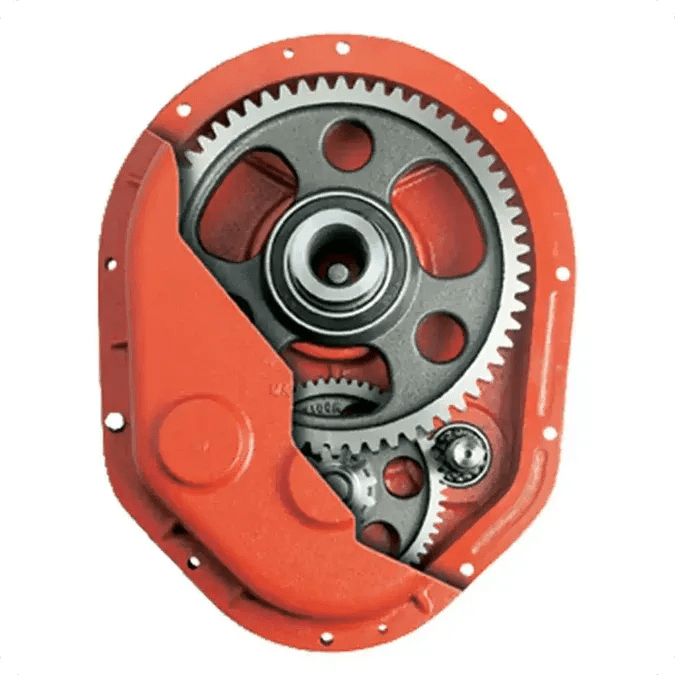

- Gearbox Drive Type
- Cast Iron
- Drive
- Pinions & Gear Rings
- Batch Input
- 3 – 3.5 bags
- Batch Output
- 10 ft³
- Charging Height
- 60"
- Batch Materials
- Mortar, Plaster, Grout
- Axle Type
- Heavy-Duty w/ High-Speed Taper Rolling Bearings
- Wheel Size
- 5.3" x 12"
- Wheel Type
- Pneumatic
- Stand Type
- High-Strength
- Width (in)
- 45"
- Operating Length (in)
- 73"
- Towing Length (in)
- 92.75"
- Height (in)
- 57.5"
- Warranty
- 1 year limited
- Manufacturer family
- 10S Mortar Mixer
- Batch Capacity Bags
- 3-3.5 bags
- Power
- Honda 8 HP gas or Baldor 2 HP electric
- Overall Height
- 57.5"
- Overall Width
- 45"
- Overall Length
- 73" / 92.75" tow pole in/out
- Tires
- 175/70R13 pneumatic
- Spiral Blade Option
- Yes
- Highway Towable
- Yes
- Included
- Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
Applications & Purchase Considerations
The 10S Series is best matched to mixing mortar, stucco, grout, and other dense masonry materials where the job requires Gasoline power source, Honda 8 HP gas or Baldor 2 HP electric power, and 10 cu ft drum capacity.
- Site utility or fuel: Gasoline
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 850 lb max
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Crown Construction Equipment |
|---|---|
| SKU | 609896p |
| MPN / Model | 609896p |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Mixers |
| Collection | Mortar Mixers |
| Product Type | Mortar/Plaster Mixer |
Before You Order
Confirm that model 609896p, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
