Product Overview

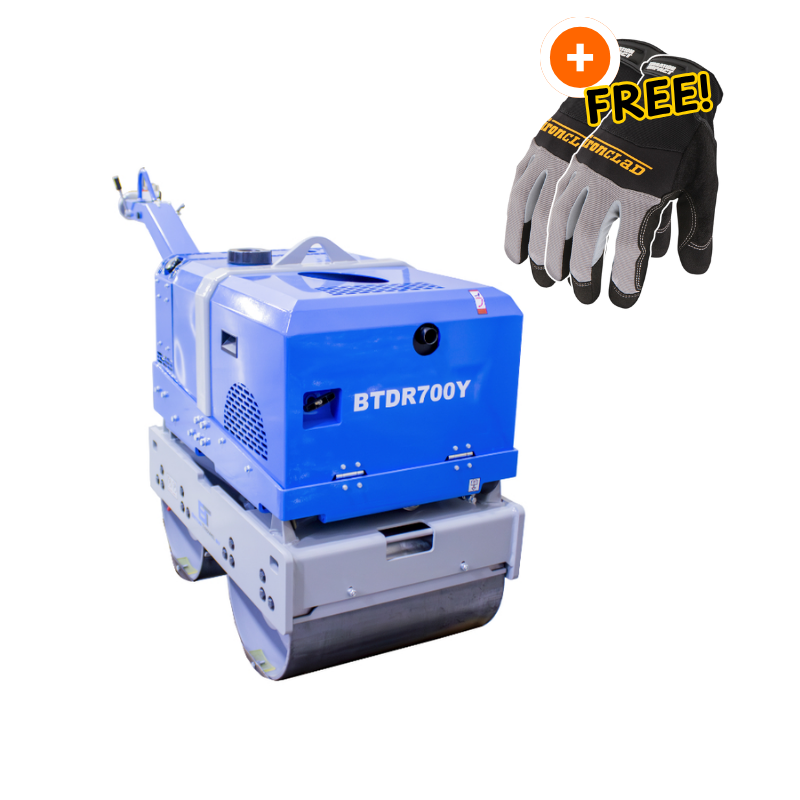

Beton Trowel BTDR700Y Compaction Roller is a compaction roller designed for larger soil and asphalt areas requiring uniform rolling coverage. The BTDR700Y configuration pairs 22.2 kN / approx. 4,991 lbf centrifugal force, 820 kg / approx. 1808 lb weight, and L100AE Diesel engine.
Key Features
- 22.2 kN compaction or impact output for jobsite production planning
- Yanmar L100AE diesel; official table also lists KAMA 186 FE MAX option power package matched to the listed SKU
- 820 kg / approx. 1808 lb machine weight helps crews plan loading and freight
- 60 m/min / approx. 197 ft/min travel speed supports productivity estimates
- 48-62 Hz / approx. 2,880-3,720 VPM vibration rate for soil, asphalt, or paver compaction
- 60 L water setup supports asphalt or paver work where applicable
Product Specifications
- Equipment Type
- Walk Behind Roller
- Engine
- L100AE Diesel
- Centrifugal Force (Lb.)
- 22.2 kN / approx. 4,991 lbf
- Dimensions
- 2550 x 700 x 1250 mm
- Width
- 25.5 in.
- Gradient Climb
- 40%
- Travel Speed
- 60 m/min / approx. 197 ft/min
- Vibrations Per Minute
- 48-62 Hz / approx. 2,880-3,720 VPM
- Warranty
- 1 Year
- Horsepower
- 6.5 HP
- Weight
- 820 kg / approx. 1808 lb
- Model
- BTDR700Y
- Engine Type
- Yanmar L100AE diesel; official table also lists KAMA 186 FE MAX option
- Max. Output Power
- 6.5 kW
- Roller Length
- 650 mm
- Roller Diameter
- 420 mm
- Vibration Frequency
- 48-62 Hz
- Max.Traveling Speed
- 60 m/min
- Limited Gradient
- 40%
- Water Tank Capacity
- 60 L
- Water Tank
- 60 L
- Advance
- Hydraulic
- Vibration
- Manual
- Source Conflict Note
- published product title lists 2000 lb; manufacturer table lists 820 kg operating weight
- Included
- Machine in listed SKU configuration; optional accessories only when stated in title or source listing
Applications & Purchase Considerations
The BTDR700Y is best matched to larger soil and asphalt areas requiring uniform rolling coverage where the job requires 22.2 kN / approx. 4,991 lbf centrifugal force, 820 kg / approx. 1808 lb weight, and L100AE Diesel engine.
- Tooling or working setup: Machine in listed SKU configuration; optional accessories only when stated in title or source listing
- Handling reference: 820 kg / approx. 1808 lb
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Beton Trowel |
|---|---|
| SKU | BTDR700Y |
| MPN / Model | BTDR700Y |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Compaction |
| Collection | Compaction Rollers |
Before You Order
Confirm that model BTDR700Y, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
